2 Port USB to RS232 RS422 RS485 Adapter

ExertisSKU: 8STICUSB2324852


£116.49 Ex. VAT *Based on Single Unit Cost*

FURTHER 5% Repeat Customer Discount For Orders Over £120

Tax included Shipping calculated at checkout

Sold out

Description 2 Port USB to RS232 RS422 RS485 Adapter

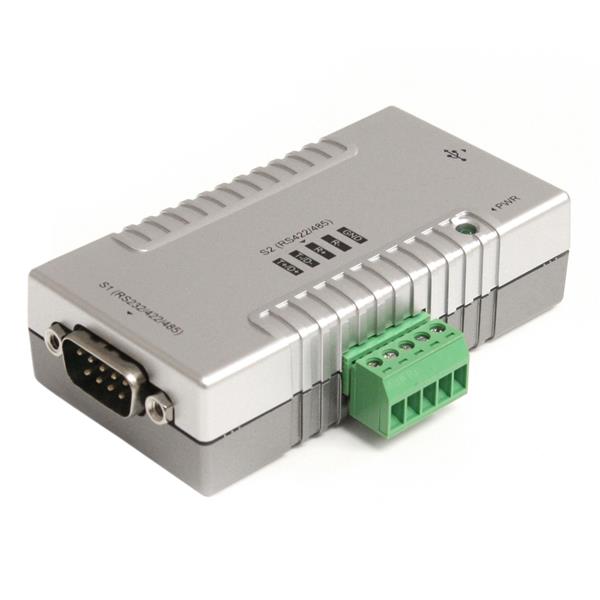

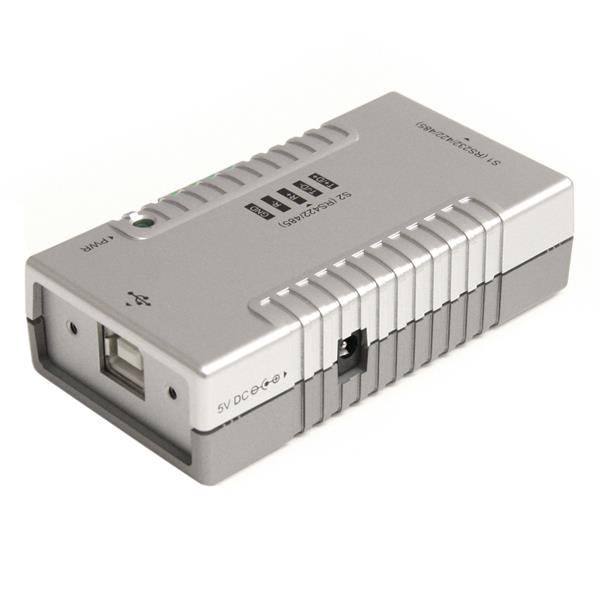

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.
For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a 2-year warranty and free lifetime technical support.

  • • Backwards compatible with USB 1.1
  • • USB-powered; No additional external power adapter required
  • • Both ports can function simultaneously with mixed or matched communication protocols

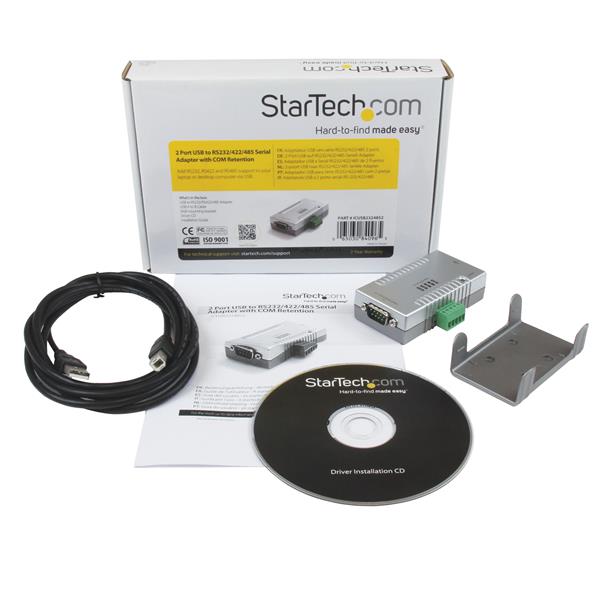

  • • Includes a bracket for wall mounting the USB to Serial adapter
  • • Features rugged screw-lock USB port to ensure cords are not accidentally disconnected
  • • Ability to rename devices for easy recognition
  • • COM Port assignments maintained after reboot
  • • Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485
  • • Multiple interface modes, including: 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)
  • • Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
